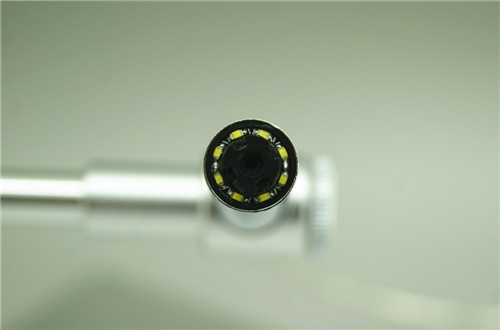

12mm  200X Multifunction Mobile&USB pen Digital Microscope with 8led for Android  system  SE-12U200A-2.0M12mm  200X Multifunction Mobile&USB pen Digital Microscope with 8led for Android  system  SE-12U200A-2.0M

12mm 200X Multifunction Mobile&USB pen Digital Microscope with 8led for Android system SE-12U200A-2.0M

  • Note: Our mobile pen camera is used for the Android devices that
  • carrying Qualcomm chips as
  • the CPU in smart phones and tablets. USB Camera devices connect
  • to mobile device using USB OTG (On-The-Go)
  • connection. It will only work with mobile devices supporting USB
  • "host" mode (USB OTG) and Android version 4.1.2 and above.

Support  system:
Note: Our mobile pen camera is used for the Android devices that carrying Qualcomm chips as
the CPU in smart phones and tablets. USB Camera devices connect to mobile device using USB OTG (On-The-Go)

connection. It will only work with mobile devices supporting USB "host" mode (USB
OTG) and Android version 4.1.2 and above.

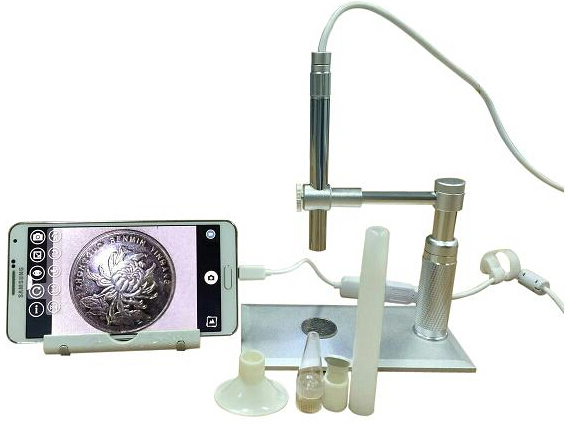

For Android:
For Users who want to connect on Android please download by using your Android device:
App for Android: contact us to get it
Menu: Connecting to Android

For Mac Users:
There is no a software on Mac right now
Please use the Photo Booth to open an image window

For Windows Users:
You can install attaching CD. Also can visit our web page: to download below App and menu:

SE-12U200A-2.0M is an UVC camera and can be opened by any other App of UVC camera

FUNCTIONS AND APPLICATIONS
The USB MICROSCOPE is a new electronic product. It is a tubular imaging system consisting of an
optical lens, an image sensor, an illumination mechanism, and an image transfer control circuit
connected to a computer. You can display the images captured by the USB MICROSCOPE on the
computer screen, store them on the computer, print them, or send them over the Internet.

As an USB microscope, it can be used to magnify stamps, coins, antiques, insects, electric circuits,
machines, fabrics, food, decorations, etc. and can also help visually impaired patients magnify small
text for reading. Also it can be used as a PC camera.

As the shape like a pen people like to call it pen camera, pen microscope and so on.

TECHNICAL SPECIFICATION
1. DSP: High power Digital Image Monarch Processor.
2. Sensor: high-quality CMOS sensor, 2.0M pixels
3. Resolution: 1600 X 1200
4. Interface: USB2.0.
5. Frame rate: 30 frames/sec (CIF and VGA).
6. Focal distance: 5mm - ∞
7. Magnification: 1x - 200× (at 5mm on 17” screen by 640 x 480 resolution)
8. USB cable length: 1.5 meters
9.: 12mm in diameter and 140mm in length


PACKING LIST
USB PEN MICROSCOPE *1
Aluminium Alloy Stand *1
Reflector* 1
Multi-function tube * 1
Ear specula * 1
Large focusing cap*  1
OTG cable * 1
CD *1


Small accessories use:

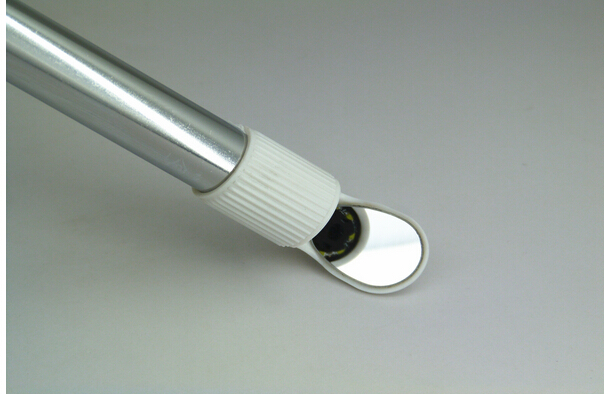

REFLECTOR
For use on the tooth checking it should be focused on any surface that is at the distance of 15mm far from the reflector before it be used for tooth checking. Please peel off the plastic film on the mirror before use the reflector.

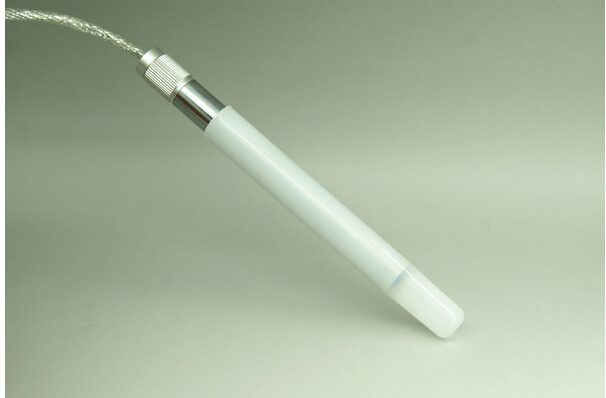

MULTI-FUNCTION TUBE
The advantage of using a multi-function tube is that it saves you from the need to constantly adjust the focus when you use the pen camera to view parts or flat surface materials and have to constantly move the camera. By attaching a multi-function tube to the pen camera, you can press the tube against the surface of the materials you want to view and thus always maintain a constant distance between the lens of the pen camera and the materials.

With the multi-function tube, the distance between the lens of the camera and observed surface is about 25mm.

To use the multi-function tube, focus on the edges of the opening at the front end of the lens. This isdone by adjusting the focus until you see a sharp edged circle on the screen. The multi-function tube can now be used to inspect the ear canal, nasal cavity, hair roots, skin, etc.



FOCUSING CAPS
The advantage of using a focusing cap is that it saves you from the need to constantly adjust the
focus when you use the pen camera to view flat surface materials and have to constantly move the camera. By attaching a focusing cap to the pen camera, you can press the cap against the surface ofthe materials you want to view and thus always maintain a constant distance between the lens of the pen camera and the materials.
With the focusing cap, the distance between the lens of the camera and observed surface is 20mm
.

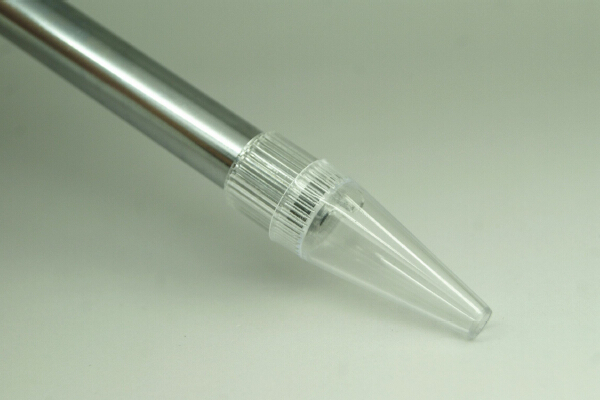

EAR TIP
To use the ear tip, focus on the edges of the opening at the front end of the lens. This is done by
adjusting the focus until you see a sharp edged circle on the screen. The ear tip can now be used to inspect the ear canal, nasal cavity, hair roots, skin, etc.

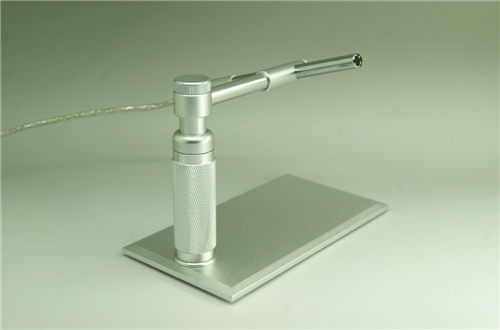

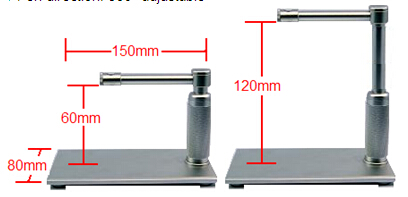

Aluminium alloy stand
An Aluminium Alloy Stand is come with the pen microscope and for fixing the pen cam while you do not use it or use the pen cam as a microscope.








GW / G.W.: 27    KGS
NW / N.W.:  26    KGS
outside the box size / MEAS.:  55x40x40  CM

PACKING LIST :


USB PEN MICROSCOPE

1

Aluminium Alloy Stand

1

Reflector

1

Multi-function tube

1

Large cap

1

Ear specular

1

Software CD (Software and User’s manual included)

1
