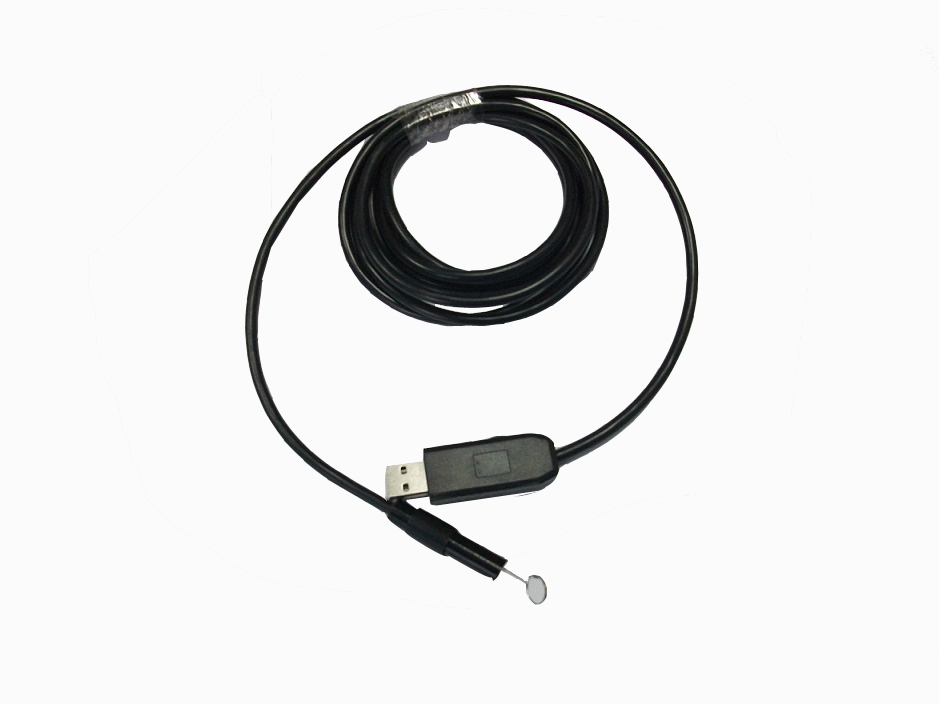

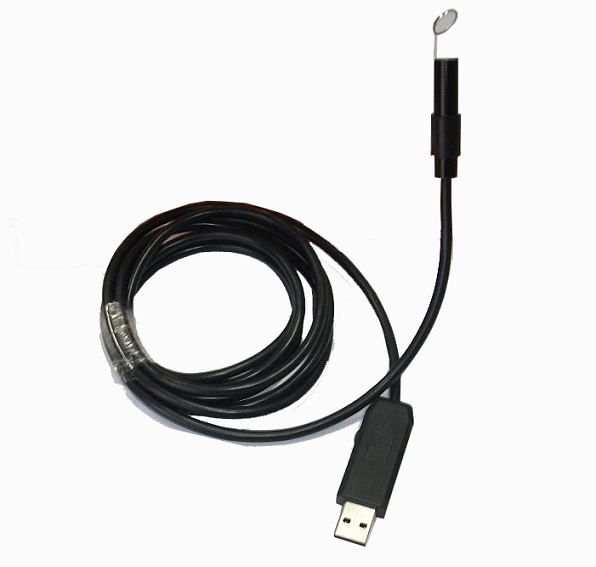

2.0M Pixel High Resolution 9mm Usb Endoscope Camera
- 1. Waterproof wire endoscope
- 2. High resolution with 1/5 CMOS camera
- 3. LED low lux luminance lights can work better when the
- light is dark
- 4. XP system can watch video directly without install software,
- Vista or Win7 need use our software which in the CD
2.0M Pixel High Resolution 9mm Usb Endoscope Camera
| Camera head outer diameter | 9mm |
| Camera | 1/5” VGA COMS |
| Pixel | 2MP |
| Resolution | 1600x1200 |
| LED | 6 White LED bright light |
| LED Swith | Adjustable lightness switch |
| I/O Interface | USB2.0 |
| Focal Distance | 6 CM-infinite |
| Image Format | VGA/QVGA |
| Waterproof Level | IP67 |
| Temperature | Up to 80℃ |
| Wide visual view angle | 62° |
| Brightness | Auto |
| Exposed Control | Auto |
| Operation System | Win XP, 2000, 2003,2007, 2008, Linux |
| Package Size | 145mm x 100mm x 40mm |
| Package | Color Box |
| Frame rate | 30FPS |
| Accessories | Mirror,Hook,Magent |
| Operating Humidity | 15~85%RH |
| Power | USB interface, supply by computer |
Features:
1. Waterproof wire endoscope
2. High resolution with 1/5 CMOS camera
3. LED low lux luminance lights can work better when the light is dark
4. XP system can watch video directly without install software, Vista or Win7 need use our software which in the CD
5. Can take photo and save it on your PC
6. Can record video, and save the video on your PC
7. Used by automobile, engine, mechanical, plumbing, air conditioning and other maintenance detection
8. Assist look at is difficult to see and access to the location
2. High resolution with 1/5 CMOS camera
3. LED low lux luminance lights can work better when the light is dark
4. XP system can watch video directly without install software, Vista or Win7 need use our software which in the CD
5. Can take photo and save it on your PC
6. Can record video, and save the video on your PC
7. Used by automobile, engine, mechanical, plumbing, air conditioning and other maintenance detection
8. Assist look at is difficult to see and access to the location
Paking List:
1. The wire cam unit x1
2. Color box x1
3. Users manual x1
4. CD x 1
5. Hook x1 , Magent x1, Mirror x1

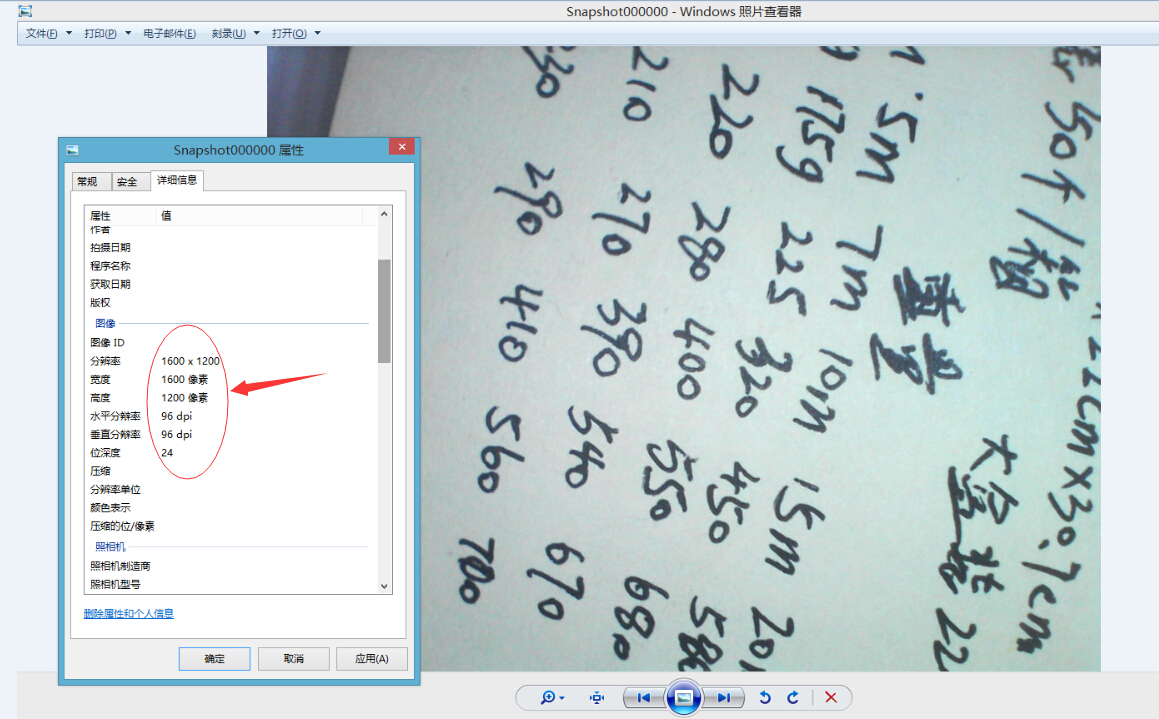

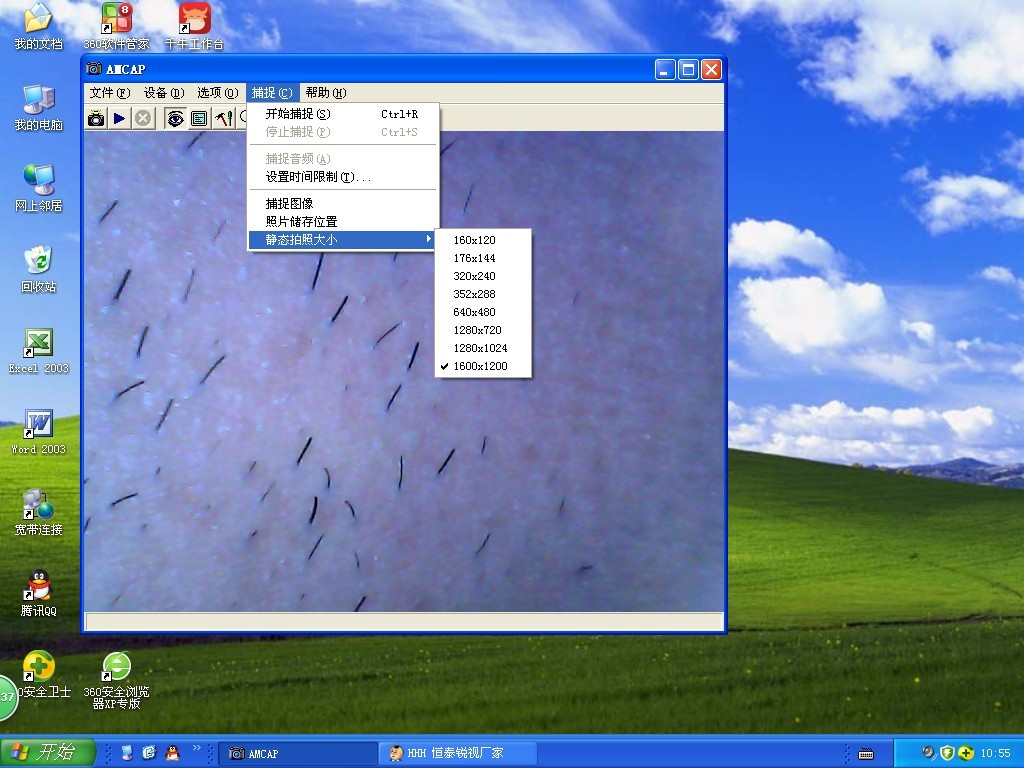

Take Video and Photo:
Step1: Put CD to CD-ROM
Step2: Copy the file RsCap1.10 to the your PC desk
Step3: Contact our USB Wire Cam to your PC and open RsCap1.10
Step4: Open the software and click “File”, choose “Set capture file” to set video or photo save file.
Step5: Click “Capture”, if you want record, click click again to stop it. If you want take a photo , Click the “snapshot” for take photo.
Package Size:
2M/5M/7M: 145mm x 100mm x 40mm
10M/15M/20M: 178mm x 140mm x 50mm
Order Guide:
Cabl length Model No
2M SE-USBP-2M
7M SE-USBP-7M
10M SE-USBP-10M
15M SE-USBP-15M
20M SE-USBP-20M
1. The wire cam unit x1
2. Color box x1
3. Users manual x1
4. CD x 1
5. Hook x1 , Magent x1, Mirror x1
Take Video and Photo:
Step1: Put CD to CD-ROM
Step2: Copy the file RsCap1.10 to the your PC desk
Step3: Contact our USB Wire Cam to your PC and open RsCap1.10
Step4: Open the software and click “File”, choose “Set capture file” to set video or photo save file.
Step5: Click “Capture”, if you want record, click click again to stop it. If you want take a photo , Click the “snapshot” for take photo.
Package Size:
2M/5M/7M: 145mm x 100mm x 40mm
10M/15M/20M: 178mm x 140mm x 50mm
Order Guide:
Cabl length Model No
2M SE-USBP-2M
7M SE-USBP-7M
10M SE-USBP-10M
15M SE-USBP-15M
20M SE-USBP-20M
