2015 Newest OTG Phone Waterproof Android Endoscope With 5mm endoscope pipe inspection camera 1M/2M/3.5M Cable Optional SE-U5.52015 Newest OTG Phone Waterproof Android Endoscope With 5mm endoscope pipe inspection camera 1M/2M/3.5M Cable Optional SE-U5.5

2015 Newest OTG Phone Waterproof Android Endoscope With 5mm endoscope pipe inspection camera 1M/2M/3.5M Cable Optional SE-U5.5

  • * Waterproof wire endoscope
  • * High resolution with 1/6 CMOS camera
  • * 6 LED low lux luminance lights can work better
  •   when the light is dark
  • * XP system can watch video directly without install software,
  •   Vista or Win7 need use our software which in the CD

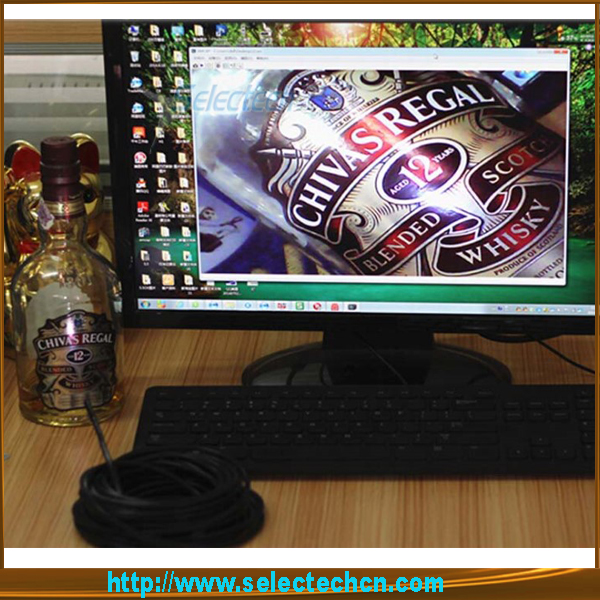

  • * Can take photo and save it on your PC
  • * Can record video, and save the video on your PC



* Waterproof wire endoscope
* High resolution with 1/6 CMOS camera
* 6 LED low lux luminance lights can work better when the light is dark
* XP system can watch video directly without install software, Vista or Win7 need use our software which in the CD
* Can take photo and save it on your PC
* Can record video, and save the video on your PC
* Used by automobile, engine, mechanical, plumbing, air conditioning and other maintenance detection
* Assist look at is difficult to see and access to the location

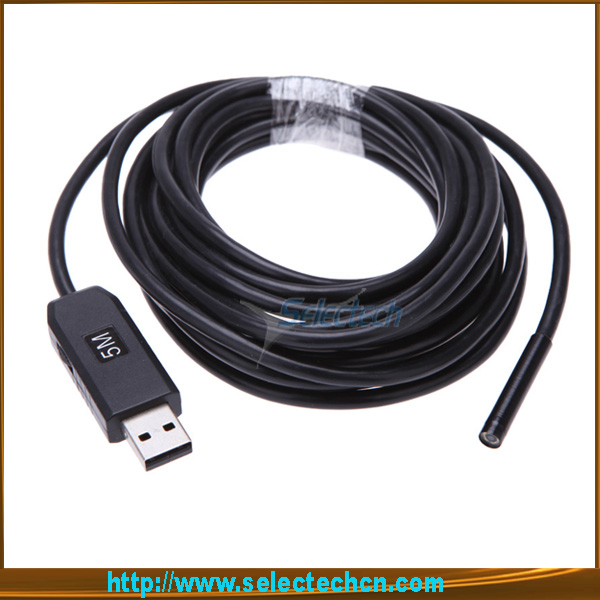

2M/5M/10M/15M/20M waterproof 5mm usb endoscope camera

True Plug & Play without driver installation below XP system
Automatically installed the software above the XP sytem when you insert CD,Can save video, take photo, setting video pixels/size/frame/style,etc
Power supply: DC 5V/0.1A

Function items
Spec Description
Camera
1/6” VGA COMS
Pixel
640 X 480
Resolution
640x480,352X288,320X240,176X144,160X120
Captuer Resolution
Up to 640X480
LED
4 White LED bright light
Brightness
Auto
Exposed control
Auto
F/NO
2.8
Camera housing diameter
Φ7.00 mm
Wide visual view angle
62°
LED switch
Adjustable lightness switch
Focal Distance
6CM-infinate






Application

1. The automobile, engine, mechanical, plumbing, air conditioning and other maintenance detection

2. Assist look at is difficult to see and access to the location

3. Pipes, building structure

4. The scientific experiments, outdoor adventure





1. The wire cam unit  x1

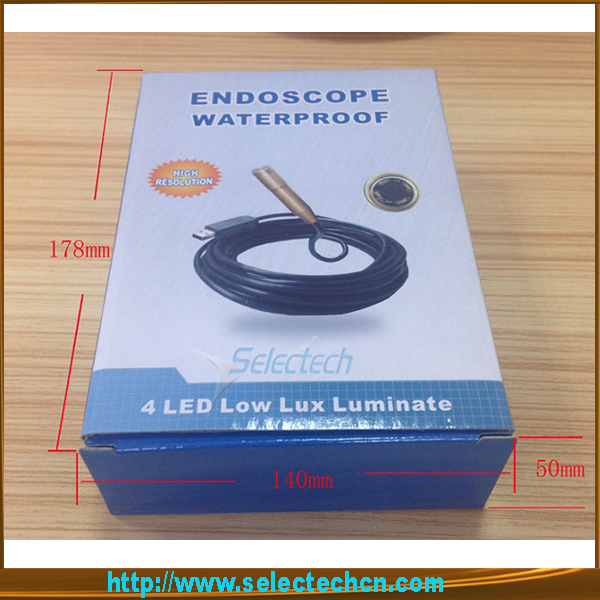

2. Color box  x1

3. Users manual  x1

4. CD  x1

5. Mirror x1

6. 10cm length OTG cable optional

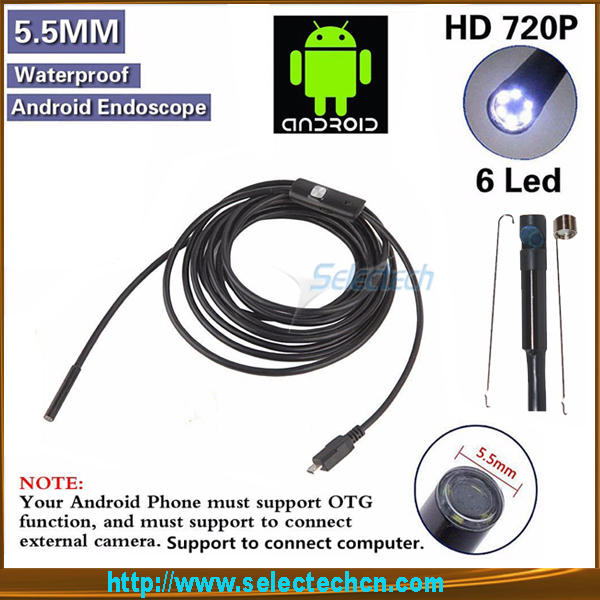

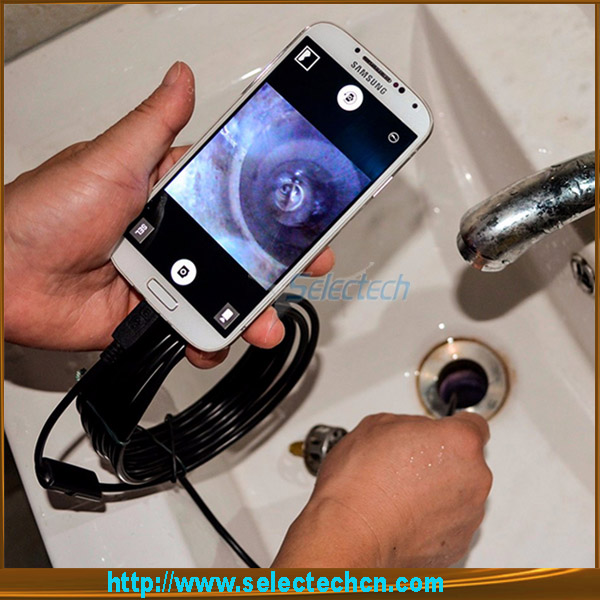

Android endoscope

New technology , you can view small parts with android mobile , not just by TV! it is more convenient!

1.Functions and Features

First make sure your phone supports OTG functionality,Android endoscope is a new type of electronic products. The advantages of this product are:small size, light weight, front end module shell diameter 7mm, the middle part of the installation of a control box, can adjust the brightness of

six LED lights, capture the imagephotographed after the camera directly stored in the Android mobile phone, you can video,the whole process of record check, convenient observation and follow-up analysis.

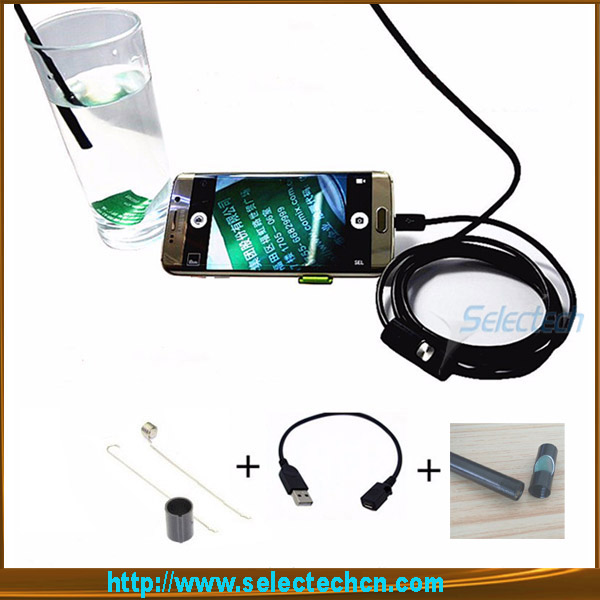

2.Take Video and Photo by your android mobile

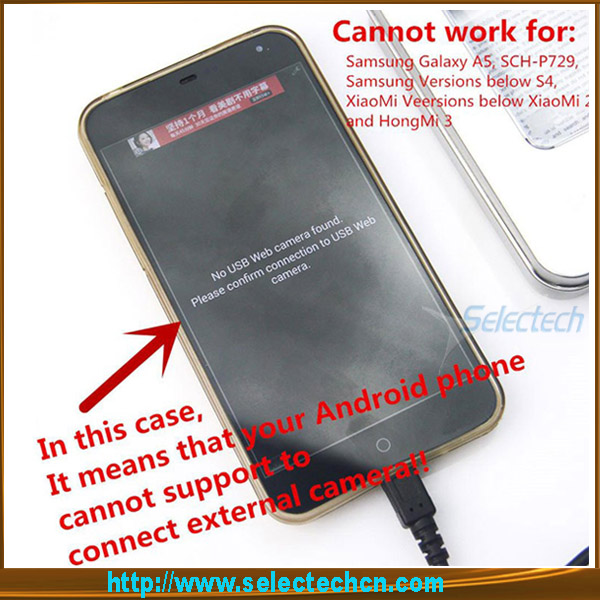

Attention: Please make sure your Android phone supports OTG functionality.
We provide two QR code for everyone to choose.
Step1: Scan the QR code on the Manual to install APP.
Step2: App installed, mobile phone desktop icon will appear.
Step3: And then click on the icon, you can take photo and record video on your phone.
Step4: Click “Capture”, if you want record, click click again to stop it. If you want take a photo , Click the “snapshot” for take photo.

How to understand its HD720P Resolution?
It is not one Real 1280*720P Resolution,it is Interpolation 720p,8fps ;
Its real resolution for this endoscope is 640*480,30fps
PS: Our factory supply 2M 5M 7M 10M 15M 20M USB industrial endoscope, accept customzied order.
