Humidity and temperature sensor/transmitter for Wall Mounting without display SE-MW seriesHumidity and temperature sensor/transmitter for Wall Mounting without display SE-MW series

Humidity and temperature sensor/transmitter for Wall Mounting without display SE-MW series

  • Power supply:12-36V DC
  • Humidity sensing element:Polymer humidity capacitor
  • Signal output for humidity:0~5V DC or 0~10V DC or 4-20mA or RS485 signal
  • Repeatability:+-0.3%RH
  • Drift rate per year:+-0.5%RH
  • Storage temperature range:40..80Celsius

Humidity and temperature sensor/transmitter for Wall Mounting without display SE-MW series


Product Features:

Full range temperature compensated! The best quality and good price!

Selectech capacitive humidity element based humidity & temperature transmitters are ideal solution for detecting relative humidity and temperature in applications such as HVAC in residential & commercial buildings.

The capacitance element based transmitter is one of the most stable transmitters available and no recalibration required, transmitters are temperature compensated and calibrated.



Selectech transmitters are problem-free and accurate with long-term reliability by apply unique HydroProbe® digital technology, our transmitters are developed for high-precision measurement of relative humidity & temperature and transmitters are available for wall & duct & outdoor mounting.

All Selectech transmitters can be equipped with industrial-class LED display, LED shows both humidity and temperature.



Specs&Description:

Power supply

12-36V DC

Humidity working range

0..100%RH

Humidity sensing element

Polymer humidity capacitor

Signal output for humidity

0~5V DC or 0~10V DC or 4-20mA or RS485 signal

Accuracy of humidity

+-2%RH(10-95%RH, 25Celsius); <+-5%RH(-40..80Celsius)

Repeatability

+-0.3%RH

Hysteresis

+-0.3%RH

Sensitivity for humidity

0.1%RH

Drift rate per year

+-0.5%RH

Temperature sensor

DS18B20

Accuracy for temperature

+-0.3Celsius(at 25Celsius)

Output for temperature

0~5V DC or 0~10V DC or 4-20mA or RS485 signal

Measuring

temperature range

Customer can select measuring temperature range by dialing switches on PCB board: 0~50Celsius, -20~80Celsius,

-40~60Celsius

Storage temperature range

-40..80Celsius

Case

ABS

Electrical connection

Screw connector Max1.5mm2

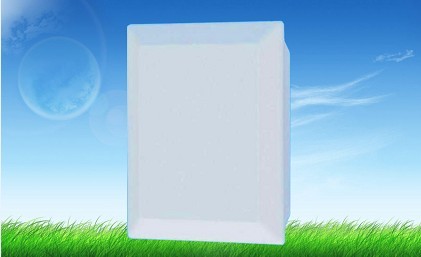

Product Pictures:


Ordering guide:

SE-MW3005, output 0~5V DC for humidity & temperature both, without LCD display
SE-MW3105LCD, output 0~5V DC for humidity & temperature both, with LCD display



SE-MW3010, output 0~10V DC for humidity & temperature both, without LCD display
SE-MW3110LCD, output 0~10V DC for humidity & temperature both, with LCD display



SE-MW3020, output 4~20mA for humidity & temperature both, without LCD display
SE-MW3120LCD, output 4~20mA for humidity & temperature both, with LCD display



SE-MW3485, RS485 signal for humidity & temperature both, without LCD display
SE-MW3485LCD, RS485 signal for humidity & temperature both, with LCD display
