RJ45 Keystone Jack with Krone IDC NE-23-Cat5e/Cat6RJ45 Keystone Jack with Krone IDC NE-23-Cat5e/Cat6RJ45 Keystone Jack with Krone IDC NE-23-Cat5e/Cat6

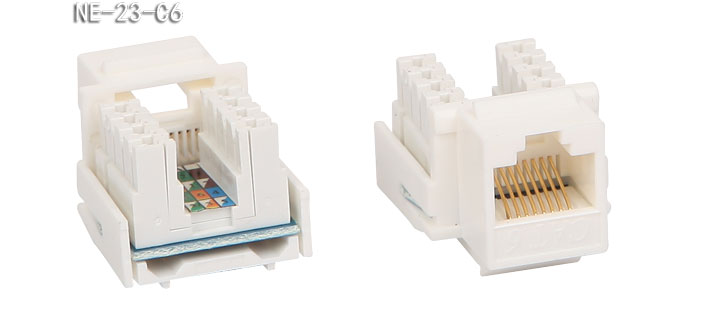

RJ45 Keystone Jack with Krone IDC NE-23-Cat5e/Cat6

  • Suitable for install various module box(wall plate) and multimedia interface
  • P/N:NE-23
  • Standard Color: Black/White
  • Material: UL 94V-0
  • Contact: Phosphor Bronze
  • Gold plating: G/F to 50μ-inch
  • Type: RJ45 Cat5e/Cat6
  • Krone IDC
  • RoHS completed



RJ45 Keystone Jack with Krone IDC NE-23-Cat5e/Cat6


Product Features:

Suitable for install various module box(wall plate) and multimedia interface
Standard Color: Black/White
Material: UL 94V-0
Contact: Phosphor Bronze
Gold plating: G/F to 50μ-inch
Type: RJ45 Cat5e/Cat6
Krone IDC
Housing Color Options 1.Black 2.White 3.Ivory 4.Gray 5.Yellow 6.Red 7.Green 8.Blue
OEM&ODM
RoHS completed




Specs& Description:

Current Rating:

1.5 AMPS

Insulation Resistance:

500 MΩ Min

DC Resistance:

0.1 Ω Max

Voltage:

AC 125V

Insertion Life:

≥750 mating cycles

Plug Retension Force:

89N

IDC Accept:

22~26 AWG Solid Wire

Temperature:

-10°c~+60°c

Wire Scheme:

T568A/B



Cat5e:


Cat6:


Product Packaging:

* 1 pcs/PE bag
* 50pcs/box
* 1000 pcs/Carton: 38*38*32 cm
